G1563 致新代理商 GMT 功放系列 运算放大器
| Part NO. | VDD (V)min. | VDD (V)max. | CH | IOUT(mA) | S/R(V/µs) | BW(MHz) | Offset(mV) | Note | Package |
| G1563 | 4.5 | 20 | 2 | 65 | 150 | 30 | 2 | Rail-to-Rail Input/Output | MSOP-8 |
General Description
The G1563 is the dual rail-to-rail input/output operation amplifiers with the low power, high voltage swing. Op-erating on supplies ranging from 4.5V to 20V, while current consuming only 3mA / per amplifier, the G1563 is with high unit-gain bandwidth of 30MHz. The G1563 also provides common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables this amplifier to offer maximum dynamic range at any supply voltage.
The G1563 also features fast slewing and settling times, as well as a high output drive capability of 65mA (sink and source). These features make these amplifiers ideal for high speed filtering and signal con-ditioning application. Other applications include battery power, TFT Vcom /Gamma buffers, portable devices, and anywhere low power consumption is important.
There are over temperature and short-circuit current limit protection embedded to avoid the unexpected damages. The G1563 is available in MSOP-8, TSSOP-8, SOP-8 (FD) and MSOP-8 (FD) package.
致新G1563 Features
- Wide Supply Operation Range +4.5V to +20V
- Beyond the Rails Input Capability
- Rail-to-Rail Output Swing Low Supply Current, 3mA / Per Amplifier (Typical)
- Low Input Offset Voltage 2mV (Typical)
- Internal Frequency Compensated for Unit Gain Stable
- Wide Bandwidth (unit gain) 30MHz
- High Slew Rate = 150V/μs
- Large DC Voltage Gain 80dB (Typical)
- ±180mA Output Short Current
- Embedded Over-Temperature Protection
- Short-Circuit Current Limit Protection
- MSOP-8, TSSOP-8, SOP-8 (FD) and MSOP-8 (FD) Package Available
Applications
- Portable Equipment
- TFT Vcom/Gamma buffers
- Battery-Powered Equipment
- ASIC Input or Output Amplifier
- Low Power/Low Voltage Applications
Ordering Information
| ORDER NUMBER | MARKING | TEMP. RANGE | PACKAGE (Green) |
| 致新G1563P81U | G1563 | _40°C~ +85°C | MSOP-8 |
| 致新G1563D11U | G1563 | _40°C~ +85°C | TSSOP-8 |
| 致新G1563F11U | G1563A | _40°C~ +85°C | SOP-8(FD) |
| 致新G1563F12U | G1563 | _40°C~ +85°C | SOP-8(FD) |
| 致新G1563F51U | G1563 | _40°C~ +85°C | MSOP-8(FD) |
Note: P8: MSOP-8 D1: TSSOP-8 F1: SOP-8 (FD) F5: MSOP-8 (FD)
1 & 2: Bonding Code
U: Tape & Reel

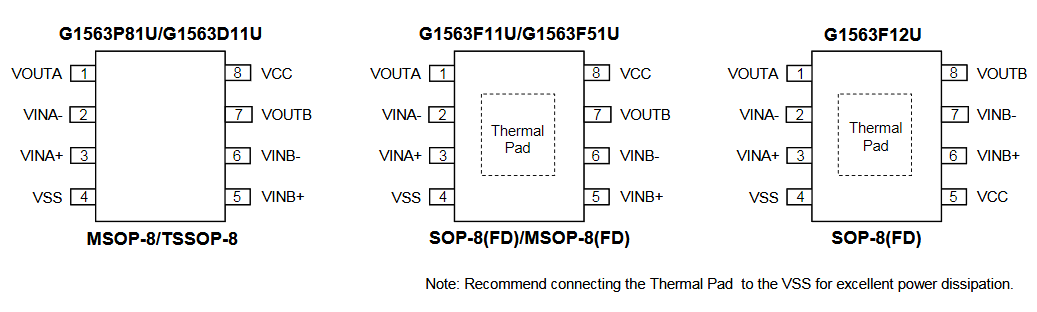

Pin Configuration
