G2620 台湾致新代理商 GMT DC-DC系列 照明驱动器
High  Efficiency,  Constant  Current  36V,  1A  LED  Driver with Internal Switch

Part Number	Vin (V)min.	Vin (V) max.	PFC	Control Mode	DIM (k Hz)	VISNS (V)	Internal MOSFET VDS(V)	Note	Package
G2620	7	36	/	Hys.	0.1~1	0.1	36	Digital/Analog Dimming Control, OTP, Open/Shorted LED Protection	SOT-23-5/ SOT-89-5

Description
The G2620 is a step-down converter, designed for driving high-brightness LED. The device operates over a 7V  to  36V  input  voltage  and  driving  current  from  few  milliamps up to 1A.

The device built-in Overload  Protection to prevent operating fails condition.

Feature
Operating Voltage: 7V to 36V
Output driving current up to 1A (1 × LED)
Internal PWM filter Shutdown Current <20μA (Typ)
Digital Dimming Control
Thermal Overload Protection
Open/Shorted LED Protection
SOP-8, SOT-23-5 and SOT-89-5 Package

Application
GPS Navigation System
Compact Back Light Module
Constant Current Source
LED Module

Ordering Information

ORDER NUMBER	MARKING	TEMP. RANGE	PACKAGE (Green)
G2620P11U	2620	~30°C to +105°C	SOP-8
G2620T11U	2620x	~30°C to +105°C	SOT-23-5
G2620TE1U	2620	~30°C to +105°C	SOT-89-5

Note:  P1:  SOP-8
T1:  SOT23-5
TE:  SOT-89-5
1: Bonding Code U: Tape & Reel Green : Lead Free / Halogen Free

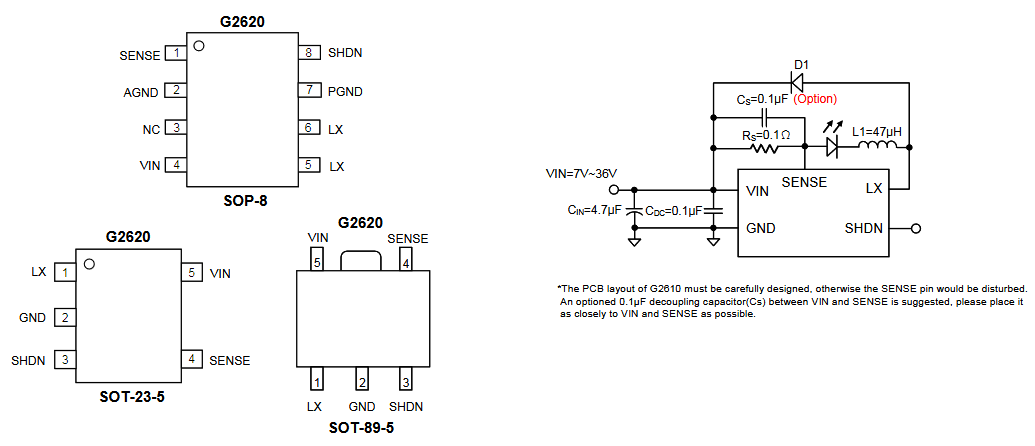

Pin Configuration                                                             Typical Application Circuit
