君正T30智能全面型H.265音视频处理器
 |
|

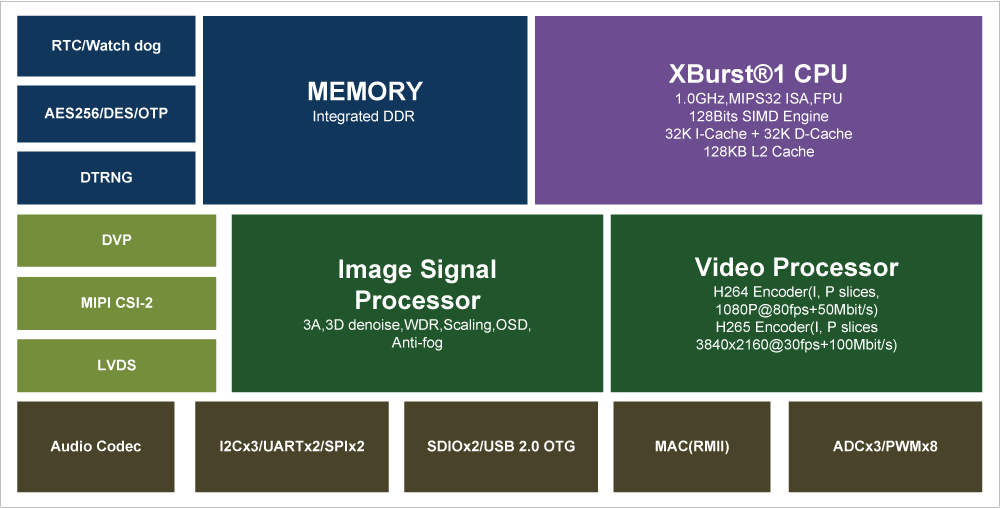

芯片框图
君正代理芯片规格
| CPU | XBurst single core, up to 1GHz. MXU2.0 IVS Engine, innovative 128 bit SIMD extension instruction 32KB L1 I-cache and 32KB L1 D-cache. 128KB L2 unified cache. Hardware floating point unit. |
| Video Encoder | H.265 Mainprofile 5M@15fps 4M@25fps+D1@25fps+JPEG@10fps 2M@25fps+D1@25fps+JPEG@10fps H.264 Highprofile 4M@25fps+D1@25fps+JPEG@10fps 2M@25fps+D1@25fps+JPEG@10fps MJPEG/JPEG B seline |
| ISP | AE, AWB, AF Lens shading correction Advanced spatial noise reduction Motion-adaptive temporal noise reduction (3D de-noise) Multi-exposure HDR image fusion (WDR) Space-variant HDR processing Host tuning tools |
| LCD Display | Support TFT LCD Support SLCD |
| Memory | Capacity of 512Mbit and 1Gbit |
| Computer Vision | Motion Detection/Perimeter Protection Face Detection Human Detection People Counting License Plate Recognition Speech Recognition video index |
| Video Input | Supports 8/10/12-bit parallel input 2-lane MIPI CSI |
| Audio | Integrated 92dB audio codec AAC, G726, G711, PCM encoding Echo cancellation |
| Connectivity & Peripherals | RTC, WDT, ADC, UART, I2C, SPI, GPIO, SDIO, PWM, USB-OTG, EMAC |
| Physical Feature | Typecal Power: 500mW including DDR Package: 11mm x 11mm, 223 pin 0.65, TFBGA, ROHS |

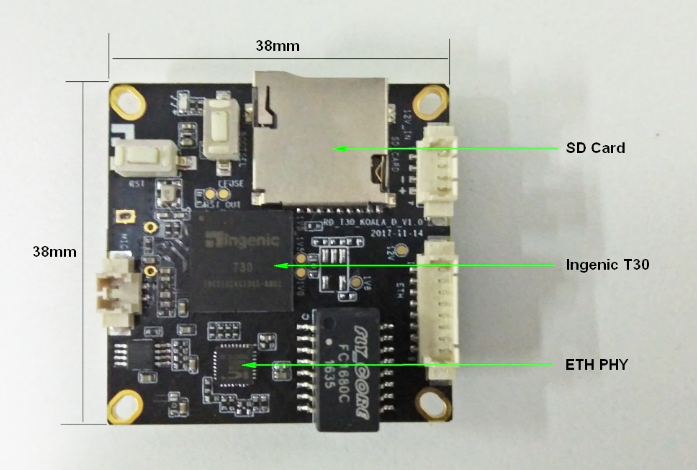

T30 KOALA开发板
开发板Feature
| 功能列表 | 描述 |
| 处理器 | T30，1GHZ，64KB L1 I/D-Cache，128KB L2 Cache，SIMD128 |
| 内存 | DDR2，Capacity-512Mb/1Gb |
| 存储 | 8/16 MByte SPI Nor Flash，128GBTF卡良好支持 |
| Sensor支持 | OV4689/OV2735(B)/SC2235/IMX323/JX-F22等 |
| 视频 | DVP/MIPI-CSI Camera |
| 音频 | 支持录放音 |
| 网络 | USB WIFI、以太网 |
| 接口 | UART，USB-OTG |
| 功耗 | SC2135 Camera Sensor，以太网双路码流，整板功耗大约在120mA@12V |
